A Bold New Beginning
New for 2025
Model Details
Engine & Performance
Interior

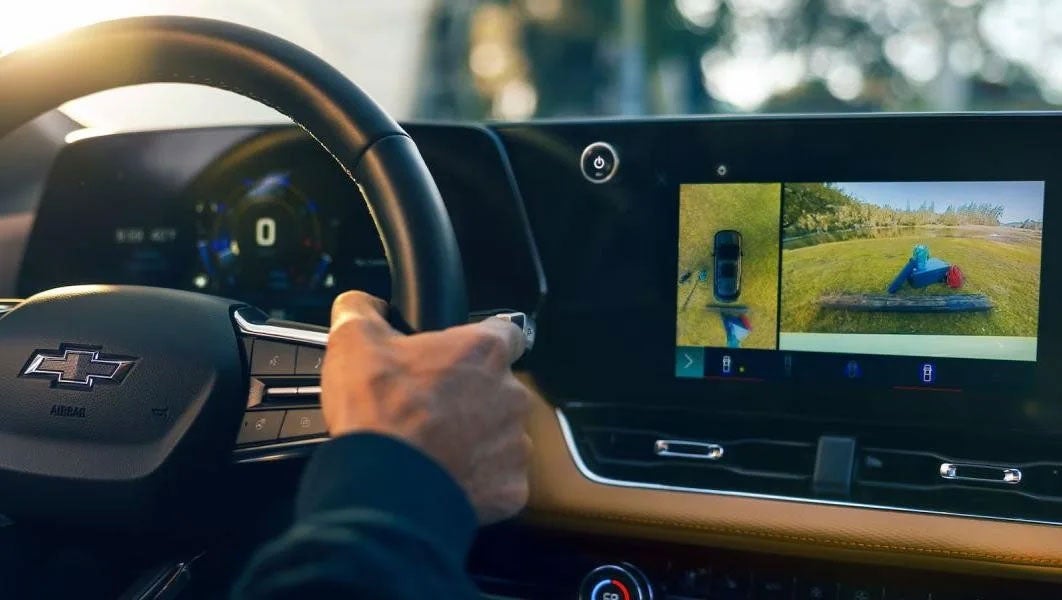

Infotainment System
Safety Features
- Automatic Emergency Braking
- Forward Collision Alert
- Front Pedestrian and Bicyclist Braking
- Following Distance Indicator
- Lane Keep Assist with Lane Departure Warning
- IntelliBeam
Additional standard safety and driver assistance features include:
- Side Bicyclist Alert
- Rear Vision Camera
- Rear Seat Reminder
- Adaptive Cruise Control
- Lane Change Alert with Side Blind Zone Alert
- Enhanced Automatic Emergency Braking
- Rear Cross Traffic Braking
- Rear Park Assist
- Enhanced Lane Keep Assist
All trims include Teen Driver, a built-in feature that allows parents to coach their new driver and instill safe driving habits — even when they’re not there. From the infotainment screen, parents can conveniently activate customizable vehicle settings and view their teen’s driving performance.
Trim Levels
LT
Starting at $28,600
- Unique LT grille and front fascia
- 1.5L turbo engine
- Cloth seating
- Heated front seats and steering wheel
- 11.3-inch diagonal infotainment touch-screen
- 11-inch diagonal Driver Information Center
- Available two-tone roof
RS
Starting at $33,000
- Unique RS grille and front fascia
- Black mirrors, moldings, emblems and badging
- Roof rails
- 1.5L turbo engine

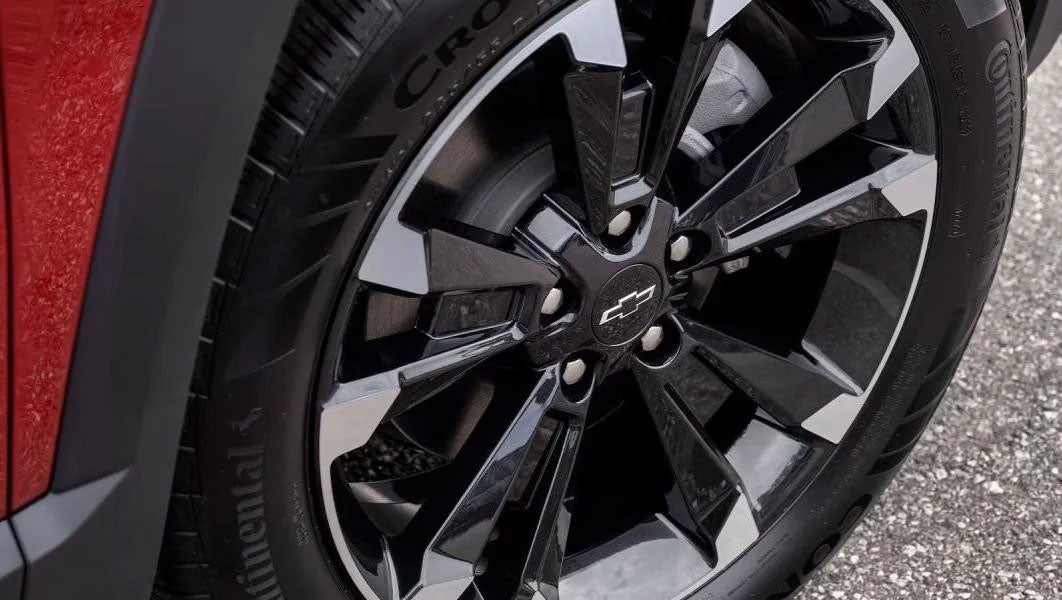

- 19-inch and available 20-inch machined wheels
- Evotex seating with Torch Red and Santorini Blue stitching
- RS debossed on front-seat head restraints
- Heated front-seat and steering wheel
- Flat-bottom steering wheel
- Available two-tone Black roof
ACTIV
Starting at $33,000
- Unique ACTIV grille and front fascia
- Black badging and emblems
- Roof rails
- 1.5L Turbo engine
- All-Terrain tires
- 17-inch machined wheels
- Evotex and sueded microfiber seating surfaces
- ACTIV stitched on front-seat head restraints
- Heated front seats and steering wheel
- Available two-tone White roof
Equinox EV
Starting at $41,900
- EPA-estimated 319 miles of electric range† with FWD
- Best-in-class standard 17.7-inch diagonal Touch-screen display
- 8-yr./100,000-mi. Battery limited warranty
- Super Cruise™ driver assistance technology Available
- Dual-height cargo floor for additional storage
- 57.2 cubic feet flexible cargo space for more of life’s adventures
Specifications
2025 Equinox Specs (click to expand)
ENGINE
Type: |
1.5L turbo DOHC DI VVT with automatic stop/start |
Bore & stroke (in. / mm): |
2.9 x 3.4 / 74 x 86.6 |
Block Material: |
Cast aluminum |
Cylinder Head Material: |
Cast aluminum |
Valvetrain: |
Dual overhead camshafts; four valves per cylinder |
Fuel Delivery: |
Direct injection |
Horsepower (hp / kW): |
175 / 130.5 @ 5600 rpm |
Torque (lb.-ft. / Nm): |
184 / 250 @ 2000-4800 rpm (FWD) |
TRANSMISSION & AXLE
Type: |
Continuously variable transmission (FWD) |
Hydra-Matic 8T45 Gear Ratios (:1) |
|
First |
4.69 |
Second |
3.31 |
Third |
3.01 |
Fourth |
1.92 |
Fifth |
1.45 |
Sixth |
1.00 |
Seventh |
0.75 |
Eighth |
0.62 |
Final Drive Ratio |
5.81 (FWD) |
CHASSIS & SUSPENSION
Front Suspension: |
MacPherson strut with specifically tuned coil springs, direct-acting stabilizer bar |
Rear Suspension: |
Four-link independent rear suspension |
Steering Type: |
Dual pinion rack electric power steering |
Steering ratio: |
17.0:1 |
Turning Circle (ft. / m): |
37.1 / 11.3 |
Brake Type: |
Four-wheel disc with ABS and ESC; Duralife™ rotors with low-drag calipers |
Wheel Size: |
17-in. aluminum (std. LT and ACTIV) |
Tire Size: |
235/65R17 all-terrain (std. ACTIV) |
EXTERIOR DIMENSIONS
Wheelbase (in. / mm): |
107.5 / 2730 |
Overall Length (in. / mm): |
183.2 / 4653 |
Overall Width (in. / mm): |
74.9 / 1902 |
Overall Height (in. / mm): |
65.6 / 1667 |
Track (in. / mm): |
Front: 63.8 / 1620 |
INTERIOR DIMENSIONS
Headroom (in. / mm): |
40.0 / 1015 (front w/o sunroof) |
Shoulder Room (in. / mm): |
57.7 / 1465 (front) |
Hip Room (in. / mm): |
55.2 / 1403 (front) |
WEIGHTS & CAPACITIES
Curb Weight (lb. / kg): |
3428 / 1555 (LT) |
EPA Passenger Volume (cu. ft. / L) |
104.3 / 2952.8 (w/o sunroof) |
Cargo Volume (cu. ft. / L)1: |
63.5 / 1799 (rear seat folded) |
Trailering Capacity (lb. / kg)2: |
800 / 363 (FWD) |
1Cargo and load capacity limited by weight and distribution.
2Before you buy a vehicle or use it for trailering, carefully review the trailering section of the Owner’s Manual. The weight of the passengers, cargo and options my reduced the amount you can tow.
FUEL TANK CAPACITY (approx.)
14.8 gal. / 56 liters (FWD) |
